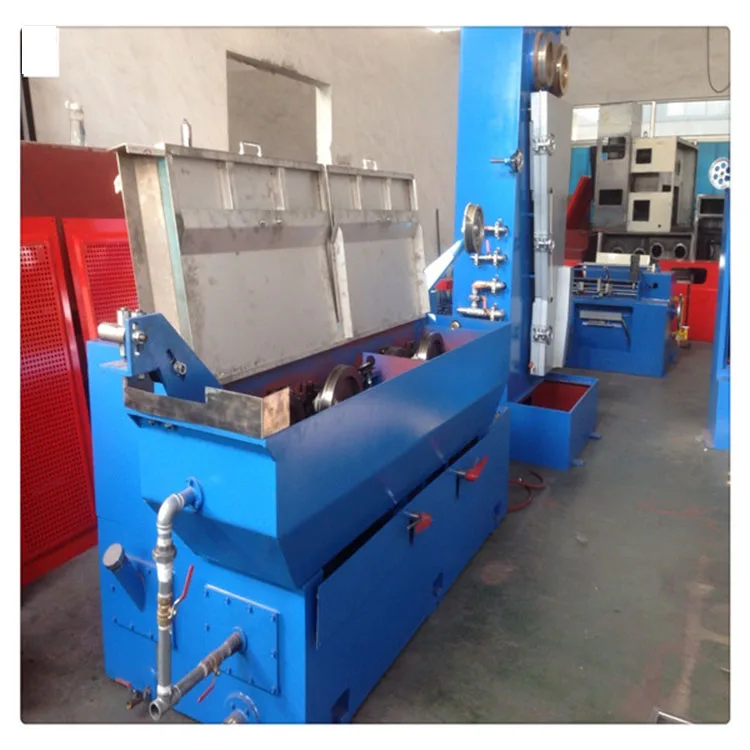

Max. No. Of Drafts 17 Intermediate Wire Drawing Machine Finished Dia 0.4-2.0mm Optionally

Place of Origin : Jiangsu, China (Mainland)

Brand Name : NEWLEAD

Model Number : 17

Certification : CE

Price : Negotiation | 1 Unit/Units cable making equipment (Min. Order)

MOQ : 1 Unit/Units

Supply Ability : 20 sets in 90 days

Delivery Time : 60 days

Packaging Details : wooden pallet or by wooden box

Condition : New

Inlet Diameter : 2.5-3.5

Outlet Diameter : 0.4-1.2/1.6/1.8/2.0 optionally

Voltage : 380/415/440/220

Power(W) : 55KW+90KVA+15KW

Dimension(L*W*H) : 12*1.5*2M

Weight : 7.5T

Warranty : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

Contact Now

Max. no. of drafts 17 Intermediate wire drawing machine finished dia 0.4-2.0mm optionally

machine type

17MDST

17DST

inlet diameter(mm) φ2.5-φ3.5 φ2.5-φ3.5
outlet diameter (mm) φ0.4-φ1.2/1.6/1.8 φ0.4-φ1.8/1.6/1.2
drawing dies No./Max(MPM) 1200 1500

main motor

 37KW 55KW
annealing motor 72KVA 90KVA
spooler motor 11KW 15KW
annealing medth DC. three-section annealing
suitable diameter of spool φ630(MAX) φ630(MAX)
revise system PID synchronous spooler
capacity for wire receiving 100-400KG 100-400KG
power source 380V 380V
brake pneumatic type
machine dimension 1000L×1400W×2450H 1000L×1400W×2450H
machine weight 6500 7300
